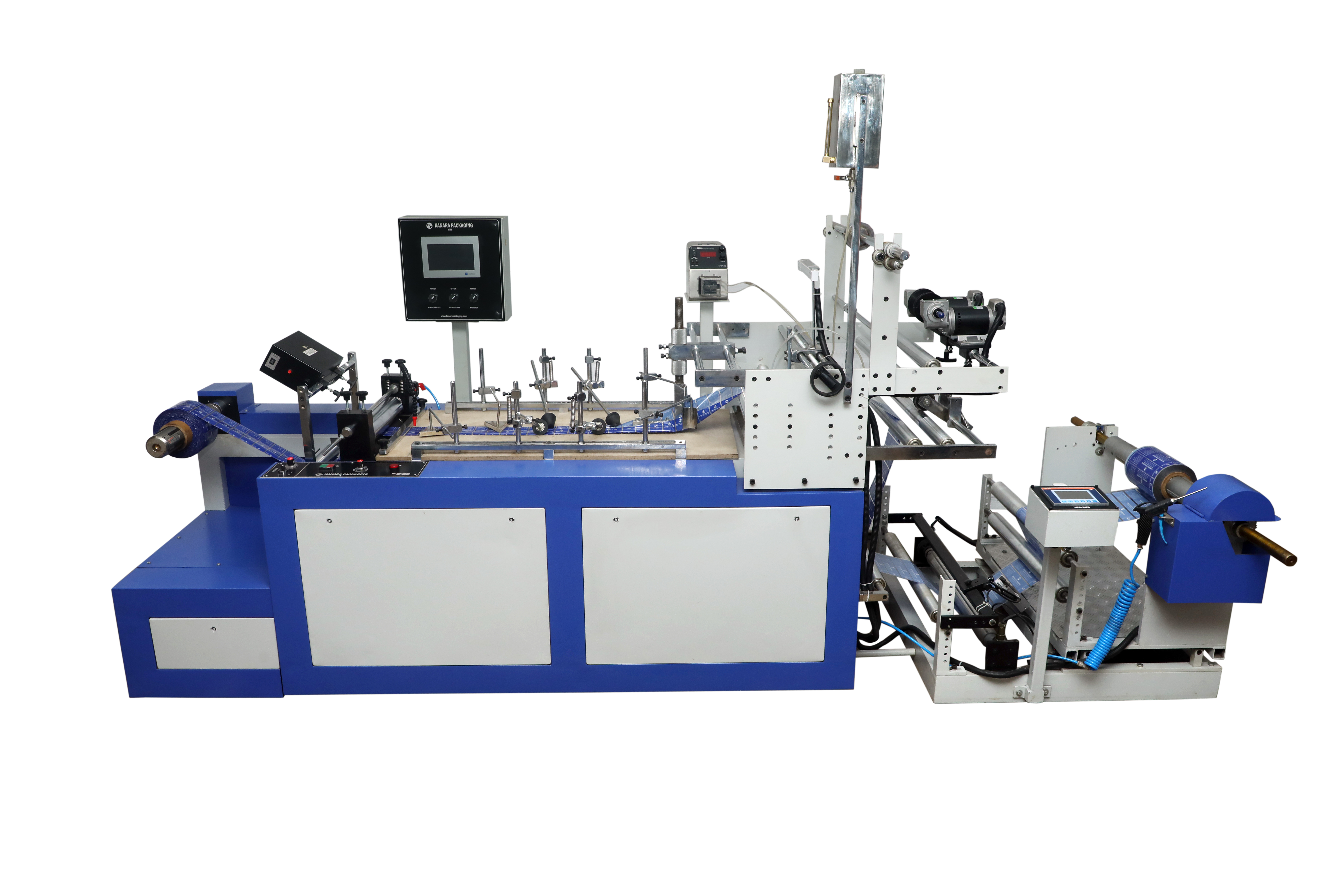

We offer PVC Shrink Label Sleeving and Gluing Machine. Our Gluing
machine is efficient, convenient and quite easy to operate. It has electronic
edge guiding system on unwind as standard. It has a manual as well as
auto gluing dispenser unit(Optional). Torque mode at re-winder end.
Our standard gluing machine has provision for later installing hotmelt unit,
hologram attachment, perforation unit and so on.
* Web size 600 mm.
* Material width 30mm to 280mm(tube form)
* Speed 180 mtr. Per min.
* 2 H.P. motor and drive for main rubber roll unit.
* 1 HP motor and drive for Rewinder.
* One unwinder station.
* Powder brake with digital voltage control .
* Brush type nozzle, manual adjustment valve and gluing tank with level indicator.
* Electronic motorized web guide system for un-winder.
* Ultrasonic Edge guide sensor.
* Blower for glue drying.
* Cantilever Rewinder unit for easy unloading.
* 1 No Step down transformer for voltage supply.
* Supply --415v / 50 Hz
OPTIONAL ATTACHMENT
* Hologram attachment.
* Airshaft.(Winder & Un-winder)
* 2 line Hotmelt system.
* Stroboscope for still image.
* Auto Gluing System with Touch screen.( PLC base)
* Auto brake system with Loadcell & Touch screen (PLC base)
* Single or Double vertical continuous perforation unit.
* Sleeve forming plate ( size by request )
